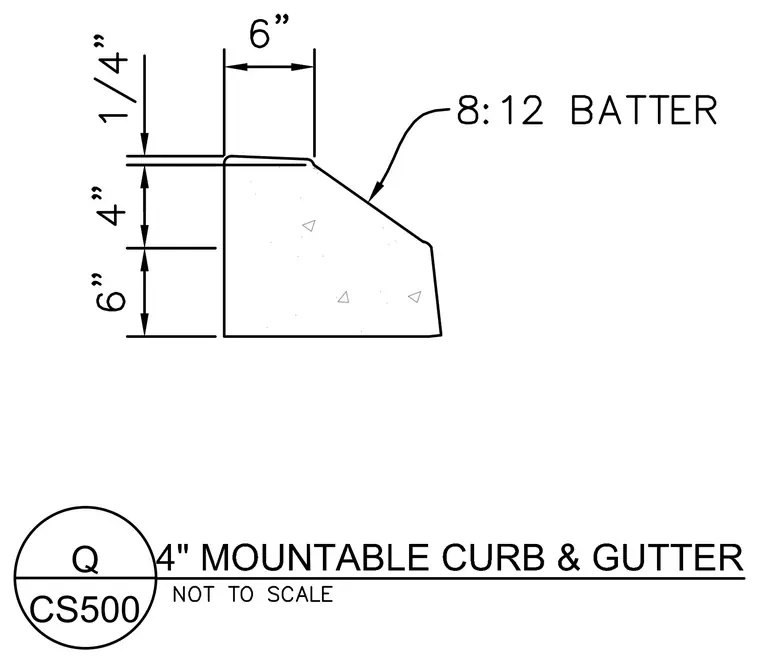

This mountable curb and gutter assembly features a 6-inch top width and an 8:12 batter on the sloped face. The vertical curb face stands 4 inches tall above a 6-inch lower vertical section, with a 1/4-inch rounded edge at the top corner.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
