Structural · C-MN3V7

Gusset Plate Layout Procedure at Braced Frame Connection

Materials

weld

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

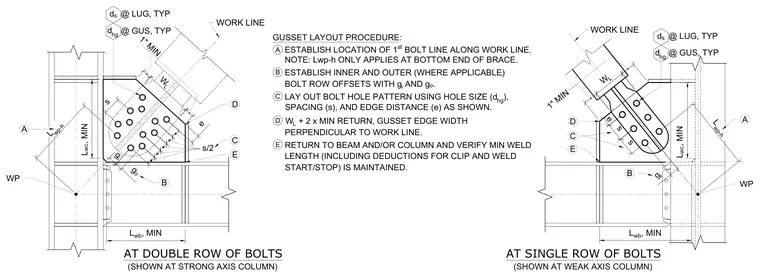

Step-by-step layout procedure for structural steel gusset plates at braced frame connections to columns and beams. The procedure establishes the location of the first bolt line along the work line, inner and outer bolt row offsets, and bolt hole patterns using specified hole sizes, spacings, and edge distances. Minimum weld lengths to the beam and column, including deductions for clips and weld starts and stops, are verified alongside gusset edge widths perpendicular to the work line. Conditions for both double and single rows of bolts at strong axis and weak axis column orientations are included.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
