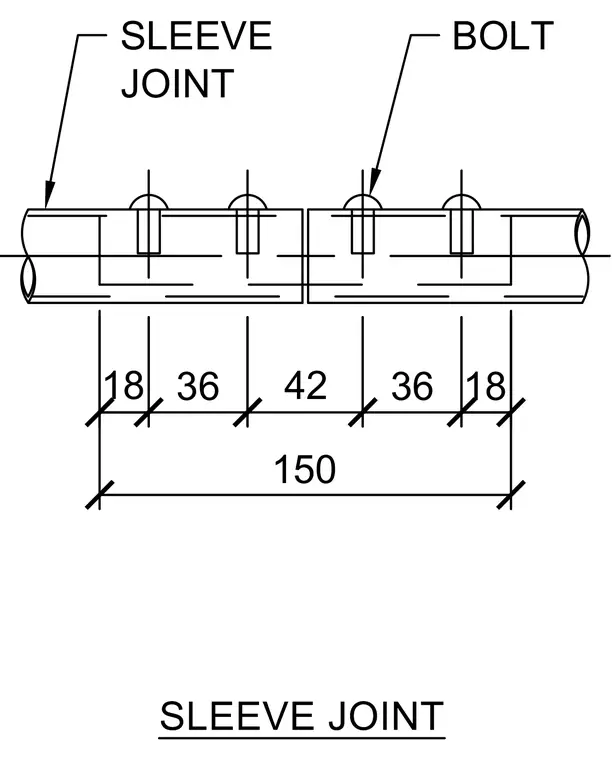

Two structural segments are joined end-to-end using an internal sleeve secured by mechanical bolts. The connection features four bolts spaced symmetrically across a total length of one hundred fifty units, with edge distances of eighteen units, intermediate spacings of thirty-six units, and a central gap of forty-two units. The sleeve overlaps the joint between the two segments to maintain alignment and transfer loads.
