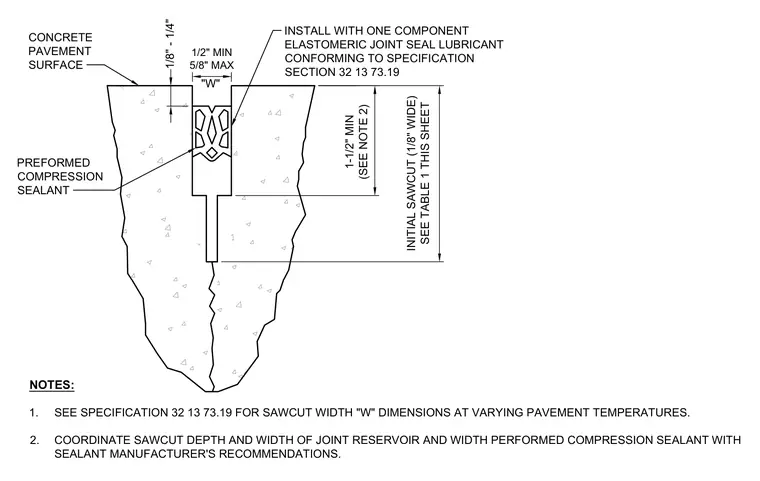

A preformed compression sealant is installed within a sawcut joint in a concrete pavement surface. The joint features an initial sawcut one-eighth inch wide extending one and a half inches minimum in depth, topped by a wider joint reservoir measuring one-half inch minimum to five-eighths inch maximum. The preformed compression sealant is installed with a one-component elastomeric joint seal lubricant conforming to specification section thirty-two thirteen seventy-three point nineteen. Sawcut width dimensions vary according to pavement temperatures per specification requirements. Depth and width of the joint reservoir are coordinated with the sealant manufacturer's recommendations.
NOTES: 1. SEE SPECIFICATION 32 13 73.19 FOR SAWCUT WIDTH "W" DIMENSIONS AT VARYING PAVEMENT TEMPERATURES. 2. COORDINATE SAWCUT DEPTH AND WIDTH OF JOINT RESERVOIR AND WIDTH PERFORMED COMPRESSION SEALANT WITH SEALANT MANUFACTURER'S RECOMMENDATIONS. PREFORMED COMPRESSION SEALANT CONCRETE PAVEMENT SURFACE INSTALL WITH ONE COMPONENT ELASTOMERIC JOINT SEAL LUBRICANT CONFORMING TO SPECIFICATION SECTION 32 13 73.19 1/2" MIN 5/8" MAX "W" 1-1/2" MIN (SEE NOTE 2) INITIAL SAWCUT (1/8" WIDE) SEE TABLE 1 THIS SHEET 1/8" - 1/4"
