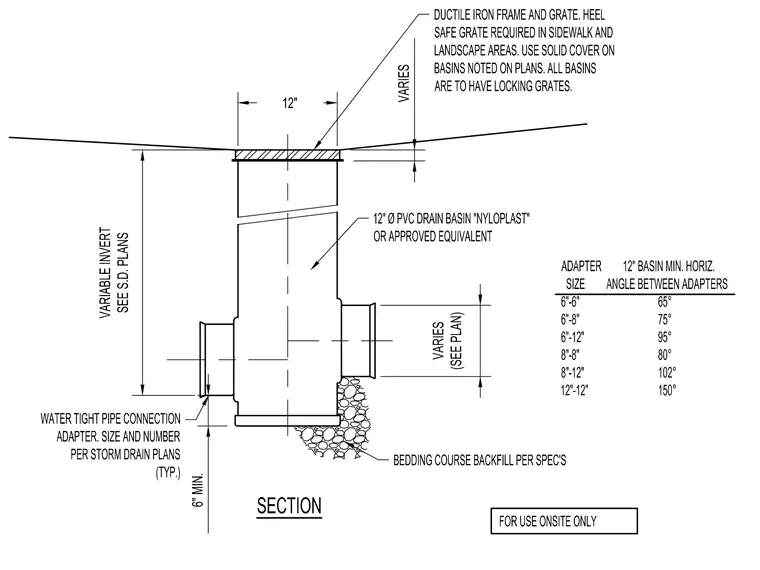

A twelve-inch diameter PVC drain basin is topped with a ductile iron frame and grate, requiring heel-safe grates in sidewalk and landscape areas and solid covers where noted on plans. Watertight pipe connection adapters are provided in size and number per the storm drain plans, with variable horizontal spacing angles detailed in the accompanying table. The basin sits on a bedding course backfill per specifications with a variable invert per storm drain plans and a six-inch minimum clearance.
12" VARIABLE INVERT SEE S.D. PLANS FOR USE ONSITE ONLY VARIES (SEE PLAN) ADAPTER 12" BASIN MIN. HORIZ. SIZE ANGLE BETWEEN ADAPTERS 6"-6" 65° 6"-8" 75° 6"-12" 95° 8"-8" 80° 8"-12" 102° 12"-12" 150° DUCTILE IRON FRAME AND GRATE. HEEL SAFE GRATE REQUIRED IN SIDEWALK AND LANDSCAPE AREAS. USE SOLID COVER ON BASINS NOTED ON PLANS. ALL BASINS ARE TO HAVE LOCKING GRATES. WATER TIGHT PIPE CONNECTION ADAPTER. SIZE AND NUMBER PER STORM DRAIN PLANS (TYP.) 6" MIN. 12" Ø PVC DRAIN BASIN "NYLOPLAST" OR APPROVED EQUIVALENT BEDDING COURSE BACKFILL PER SPEC'S VARIES SECTION
