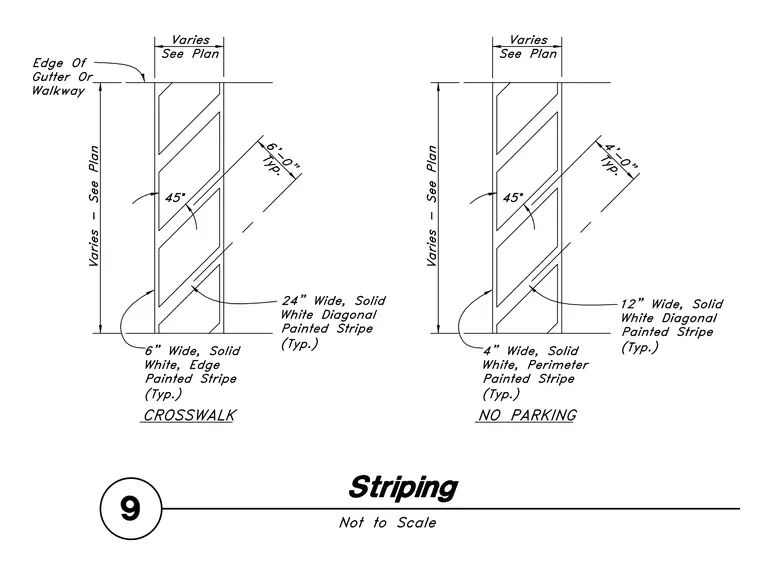

Two typical pavement striping configurations are shown for civil site layouts. The crosswalk detail features a six-inch-wide solid white edge painted stripe with twenty-four-inch-wide solid white diagonal painted stripes set at a forty-five-degree angle and six-foot typical spacing. The no-parking detail features a four-inch-wide solid white perimeter painted stripe with twelve-inch-wide solid white diagonal painted stripes set at a forty-five-degree angle and four-foot typical spacing. Both markings span a variable length and width per plan relative to the edge of the gutter or walkway.
