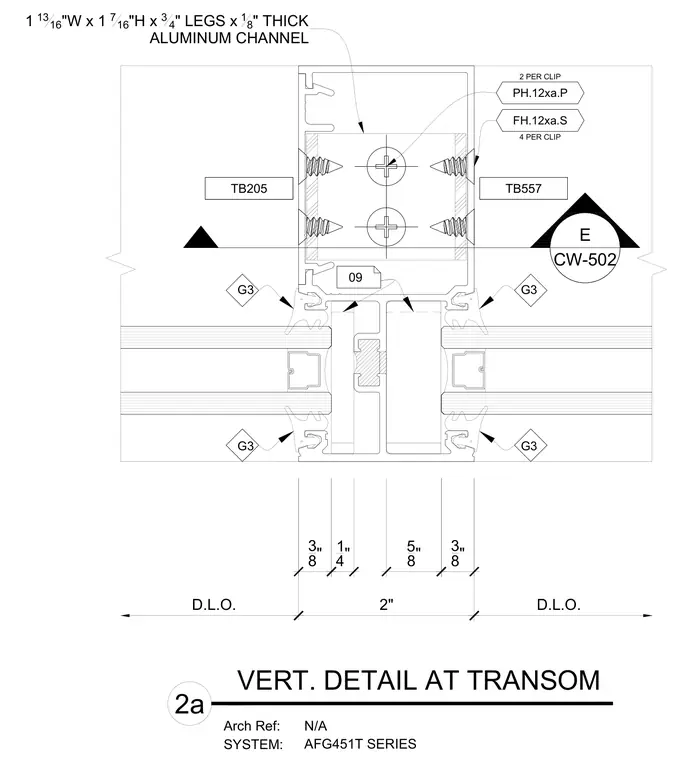

This vertical detail at the transom of an aluminum curtain wall shows glazing infill secured with gaskets, dimensioned daylight openings, and an internal aluminum channel profile. The extruded aluminum members are joined using mechanical fasteners including four flat-head screws per clip on one side and two pan-head screws per clip on the other, utilizing thermal break components TB205 and TB557. Gaskets provide weather sealing around the captured vision glass panels.
2" D.L.O. 3 8" D.L.O. 3 8" TB557 TB205 G3 G3 G3 G3 09 E CW-502 4 PER CLIP FH.12xa.S 2 PER CLIP PH.12xa.P 1 1316 "W x 1 716 "H x 3 4 " LEGS x 18 " THICK ALUMINUM CHANNEL Arch Ref: SYSTEM: VERT. DETAIL AT TRANSOM 2a N/A AFG451T SERIES 1 4" 5 8"
