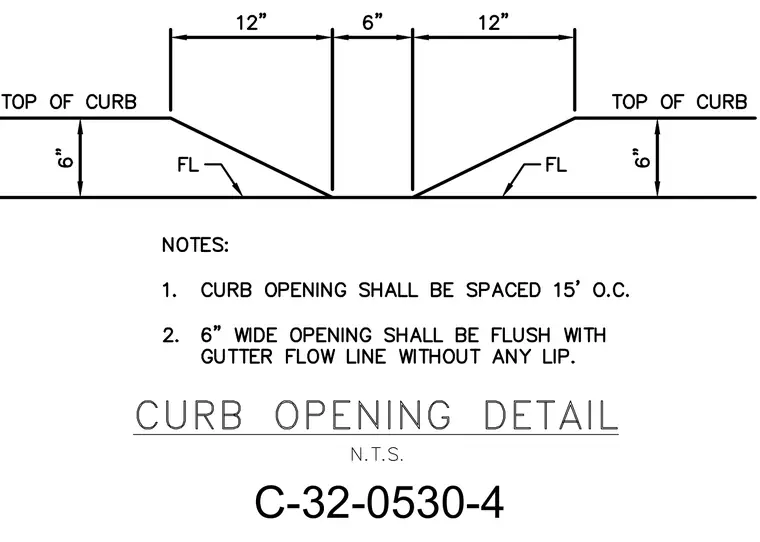

A concrete curb opening features a six inch drop from the top of the curb to the gutter flow line over a twelve inch transition slope. The opening width measures six inches across, positioned flush with the gutter flow line without any lip. Curb openings are spaced fifteen feet on center.
