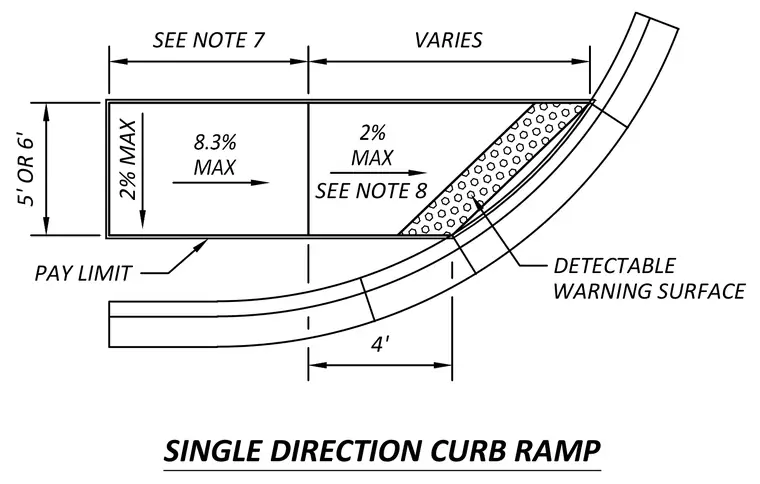

This civil layout details a single direction curb ramp with a maximum running slope of eight point three percent and a maximum cross slope of two percent. The ramp width measures five or six feet with a pay limit boundary encompassing the approach and transition zones. A detectable warning surface is positioned at the bottom transition per project notes and standards.
SINGLE DIRECTION CURB RAMP SEE NOTE 7 8.3% MAX DETECTABLE WARNING SURFACE 2% MAX 2% MAX VARIES 5' OR 6' 4' SEE NOTE 8 PAY LIMIT
