A nine-inch minimum diameter sediment control log is seated within a compacted soil trench and anchored by one-and-a-half by one-and-a-half by eighteen-inch minimum wooden stakes driven at a maximum spacing of four feet. A wedge of soil free of rocks and debris is backfilled on the uphill side of the log and tightly compacted using a shovel or weighted lawn roller. Adjacent sediment control logs overlap by a minimum of twelve inches to prevent gaps along the flow path.

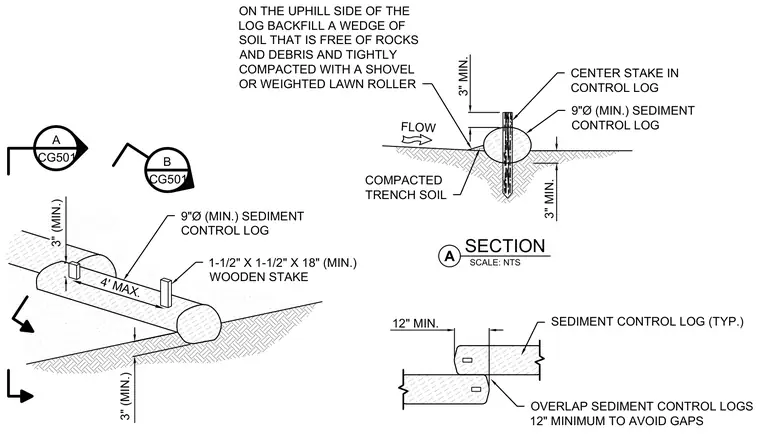

1-1/2" X 1-1/2" X 18" (MIN.) WOODEN STAKE 3" (MIN.) 9"Ø (MIN.) SEDIMENT CONTROL LOG 4' MAX. 3" (MIN.) 3" MIN. CENTER STAKE IN CONTROL LOG 9"Ø (MIN.) SEDIMENT CONTROL LOG 3" MIN. COMPACTED TRENCH SOIL OVERLAP SEDIMENT CONTROL LOGS 12" MINIMUM TO AVOID GAPS 12" MIN. SEDIMENT CONTROL LOG (TYP.) SECTION A SCALE: NTS ON THE UPHILL SIDE OF THE LOG BACKFILL A WEDGE OF SOIL THAT IS FREE OF ROCKS AND DEBRIS AND TIGHTLY COMPACTED WITH A SHOVEL OR WEIGHTED LAWN ROLLER FLOW CG501 A CG501 B
