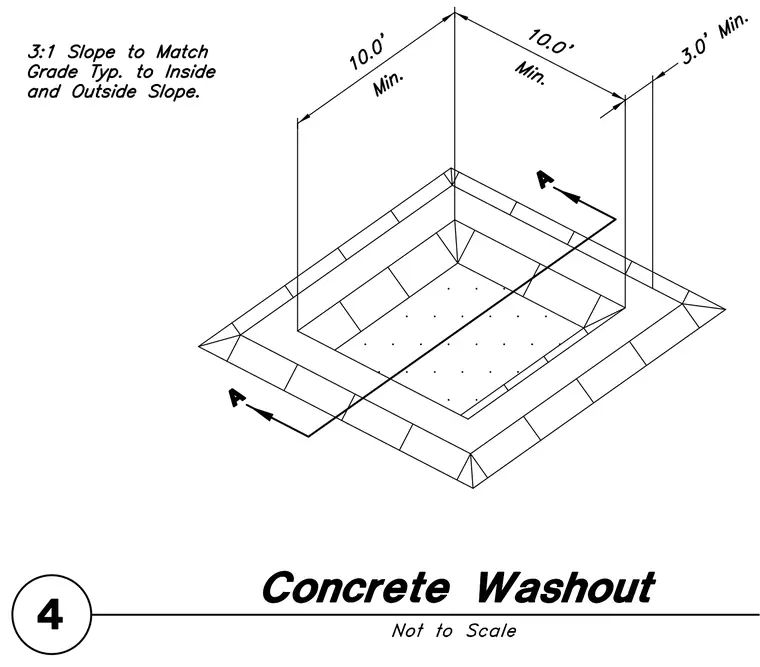

A standard concrete washout pit features a minimum 10.0-foot interior dimension and a 3.0-foot minimum surrounding apron width. The side slopes are graded at a typical 3:1 ratio matching the existing grade on both the inside and outside slopes. A section cut line A-A spans across the facility.
