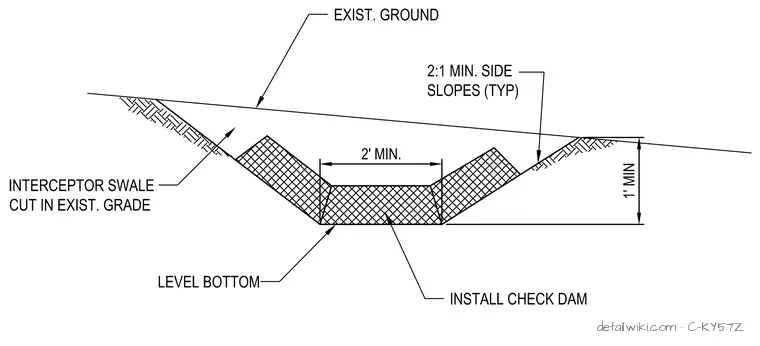

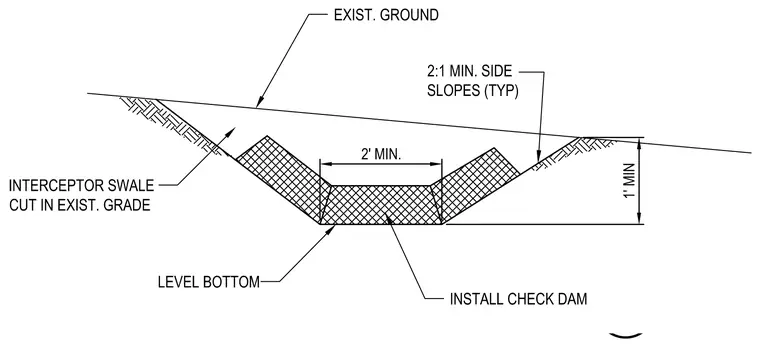

This temporary interceptor swale is cut into the existing ground with a minimum depth of one foot and a minimum bottom width of two feet. The side slopes are constructed at a minimum ratio of two-to-one. A check dam is installed within the swale to manage flow and erosion control.
