A six-inch outside diameter galvanized steel pipe is filled with concrete and finished with a rounded top, primed, and painted with three coats. The pipe embeds into an eighteen-inch diameter concrete foundation reinforced with four vertical number five bars and three number three bar ties. The foundation sits on a six-inch gravel layer at the bottom. The top of the concrete slopes away from the bollard at a quarter inch per foot.

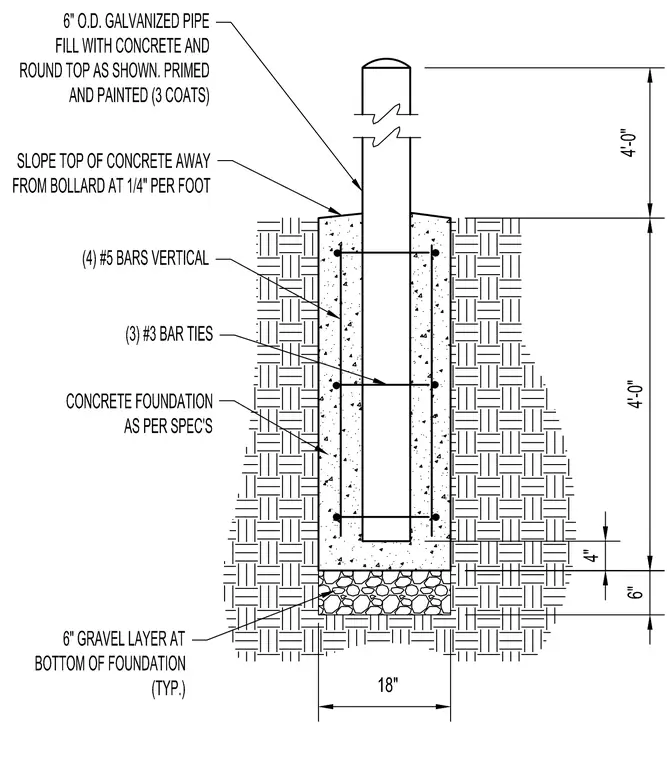

4'-0" 4'-0" 4" 6" 18" 6" O.D. GALVANIZED PIPE FILL WITH CONCRETE AND ROUND TOP AS SHOWN. PRIMED AND PAINTED (3 COATS) SLOPE TOP OF CONCRETE AWAY FROM BOLLARD AT 1/4" PER FOOT CONCRETE FOUNDATION AS PER SPEC'S 6" GRAVEL LAYER AT BOTTOM OF FOUNDATION (TYP.) (3) #3 BAR TIES (4) #5 BARS VERTICAL
