Typical Plate to W-Shape Member Connection Details

Materials

Steel

Elements

Columns Connections / Plates

Connections

Welded Connection

About this detail

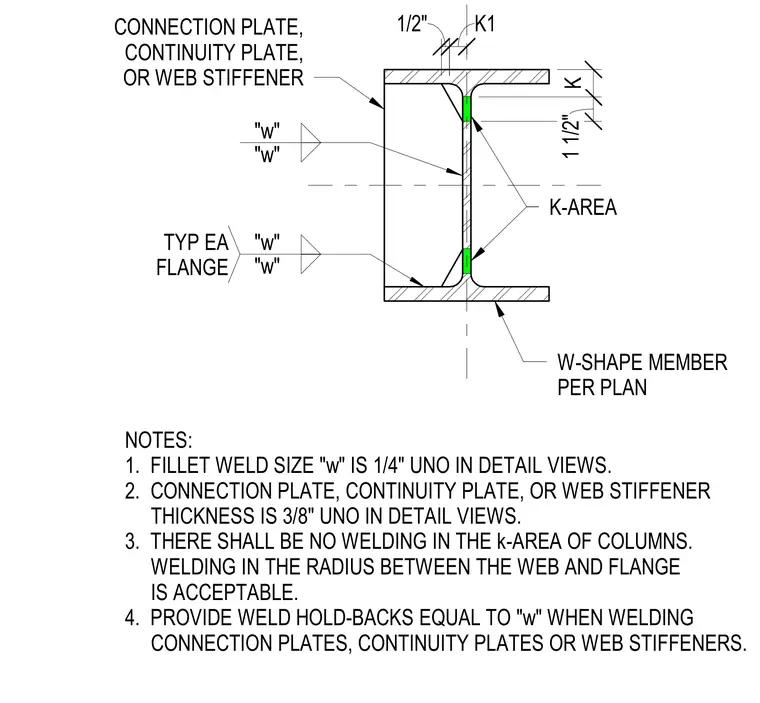

Connection plates, continuity plates, or web stiffeners attach to the flanges and web of a W-shape steel member per plan. Fillet welds of size "w" are specified as one-quarter inch unless noted otherwise, with a typical plate thickness of three-eighths inch. Weld hold-backs equal to "w" are required when welding these plates, and welding is prohibited in the k-area of columns while permitted in the radius between the web and flange.
