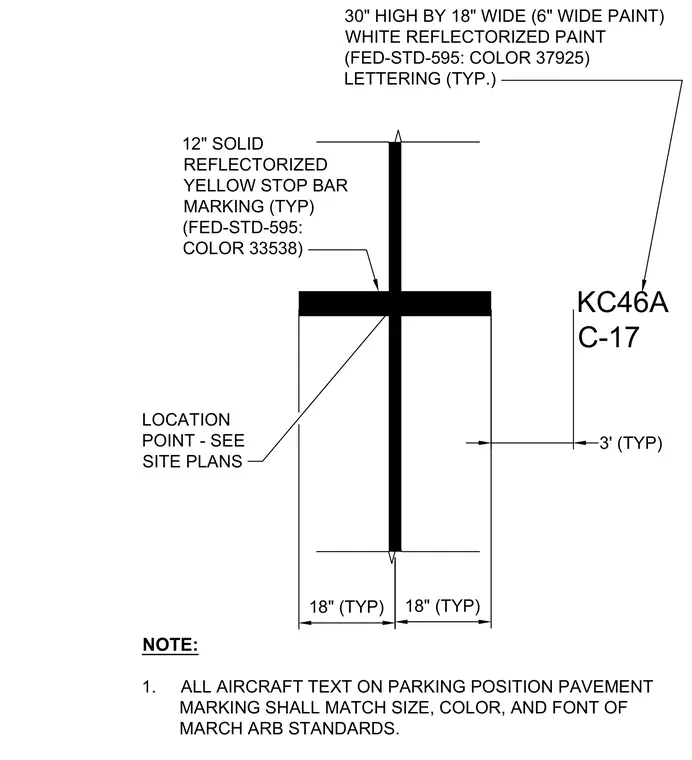

This detail specifies the configuration for a stop bar pavement marking with a twelve-inch solid reflectorized yellow stop bar using Federal Standard 595 color 33538. Lettering for aircraft identification such as KC46A and C-17 utilizes thirty-inch high by eighteen-inch wide white reflectorized paint with six-inch wide strokes matching Federal Standard 595 color 37925. Typical spacing dimensions include eighteen inches from centerline and a three-foot offset. All aircraft text on parking position pavement markings must match the size, color, and font of the specified standards.
KC46A C-17 3' (TYP) 18" (TYP) 18" (TYP) NOTE: 1. ALL AIRCRAFT TEXT ON PARKING POSITION PAVEMENT MARKING SHALL MATCH SIZE, COLOR, AND FONT OF MARCH ARB STANDARDS. 12" SOLID REFLECTORIZED YELLOW STOP BAR MARKING (TYP) (FED-STD-595: COLOR 33538) 30" HIGH BY 18" WIDE (6" WIDE PAINT) WHITE REFLECTORIZED PAINT (FED-STD-595: COLOR 37925) LETTERING (TYP.) LOCATION POINT - SEE SITE PLANS
