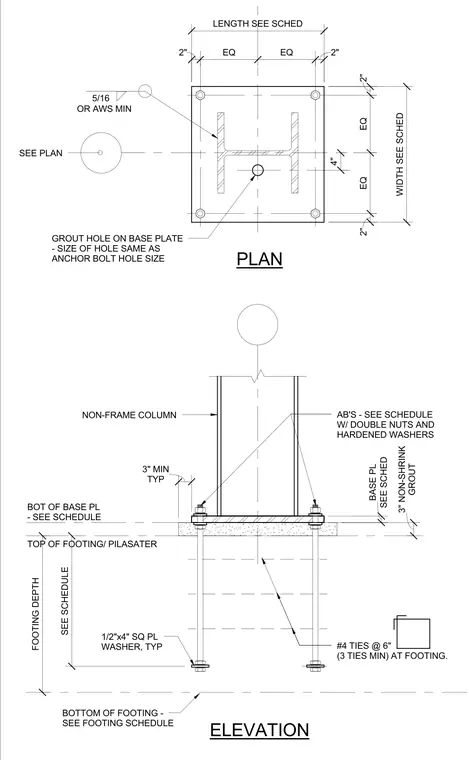

A non-frame structural steel column is welded to a base plate anchored to a concrete footing or pilaster. The base plate rests on a three-inch non-shrink grout pad, with anchor bolts secured by double nuts and hardened washers. A four-inch grout hole matches the anchor bolt hole size. Square plate washers measuring one-half by four inches are provided typically at the embedded anchor bolt ends. The footing includes number four ties spaced at six inches with a minimum of three ties at the footing.
BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP OR AWS MIN 5/16 TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
