A doweled construction joint in a concrete slab or paving forms whenever operations are delayed or stopped. Steel dowels are epoxied into drilled holes in the hardened concrete edge, with drilled holes having a diameter one-eighth inch larger than the dowel diameter. The protruding end of the dowel is coated with oil or grease to allow slip movement. Edge bar clearance must be a minimum of 0.6 times the length of the bar. Concrete drilling is restricted until at least 72 hours after placement.

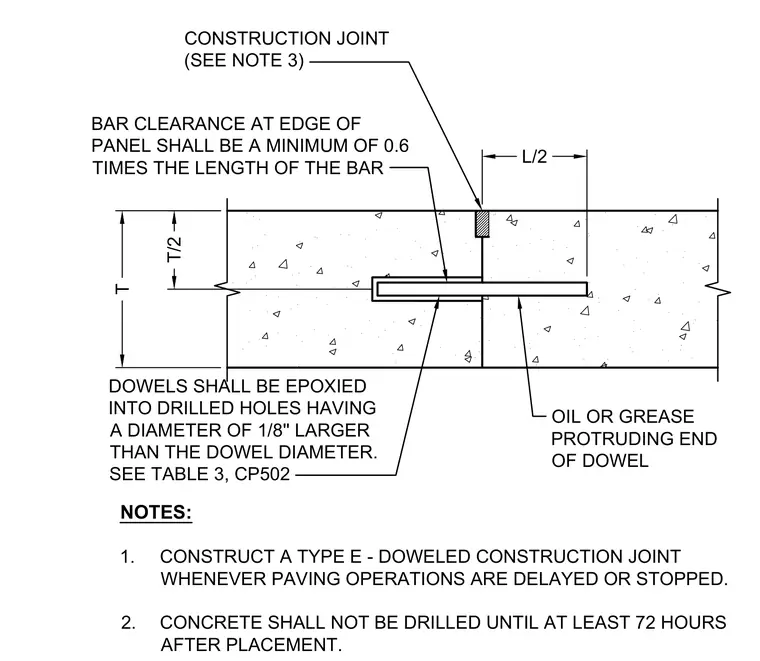

L/2 T T/2 BAR CLEARANCE AT EDGE OF PANEL SHALL BE A MINIMUM OF 0.6 TIMES THE LENGTH OF THE BAR DOWELS SHALL BE EPOXIED INTO DRILLED HOLES HAVING A DIAMETER OF 1/8'' LARGER THAN THE DOWEL DIAMETER. SEE TABLE 3, CP502 OIL OR GREASE PROTRUDING END OF DOWEL CONSTRUCTION JOINT (SEE NOTE 3) NOTES: 1. CONSTRUCT A TYPE E - DOWELED CONSTRUCTION JOINT WHENEVER PAVING OPERATIONS ARE DELAYED OR STOPPED. 2. CONCRETE SHALL NOT BE DRILLED UNTIL AT LEAST 72 HOURS AFTER PLACEMENT.
