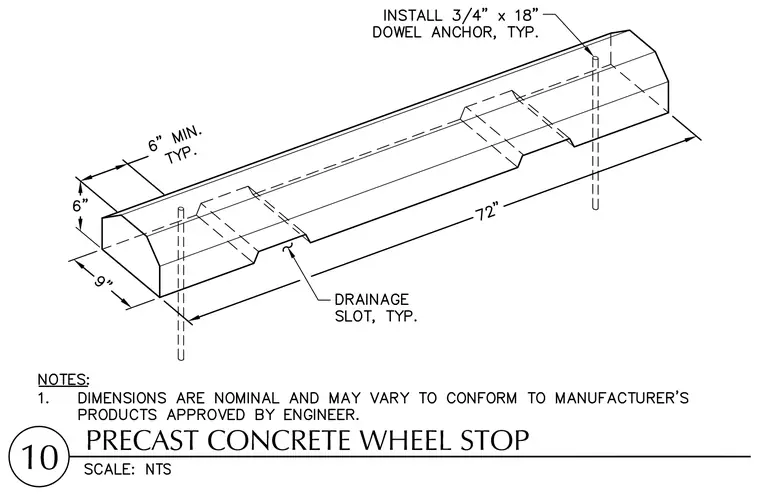

A precast concrete wheel stop measuring 72 inches long, 9 inches wide, and 6 inches high is secured to the supporting surface using typical three-quarter inch by 18-inch dowel anchors placed 6 inches minimum from the ends. The unit incorporates typical drainage slots along the bottom edge to prevent water pooling. All dimensions are nominal and may vary to conform to manufacturer products approved by the engineer.
