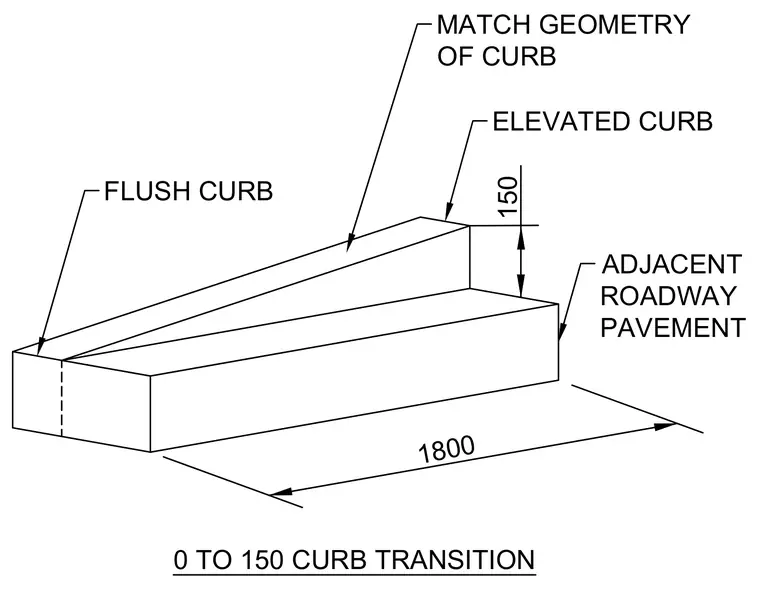

A site curb transition transitions from a flush curb condition to an elevated curb profile with a height of 150 millimeters. The transition ramp spans a length of 1800 millimeters matching the geometry of the adjacent roadway pavement.
ADJACENT ROADWAY PAVEMENT MATCH GEOMETRY OF CURB 1800 150 0 TO 150 CURB TRANSITION FLUSH CURB ELEVATED CURB
