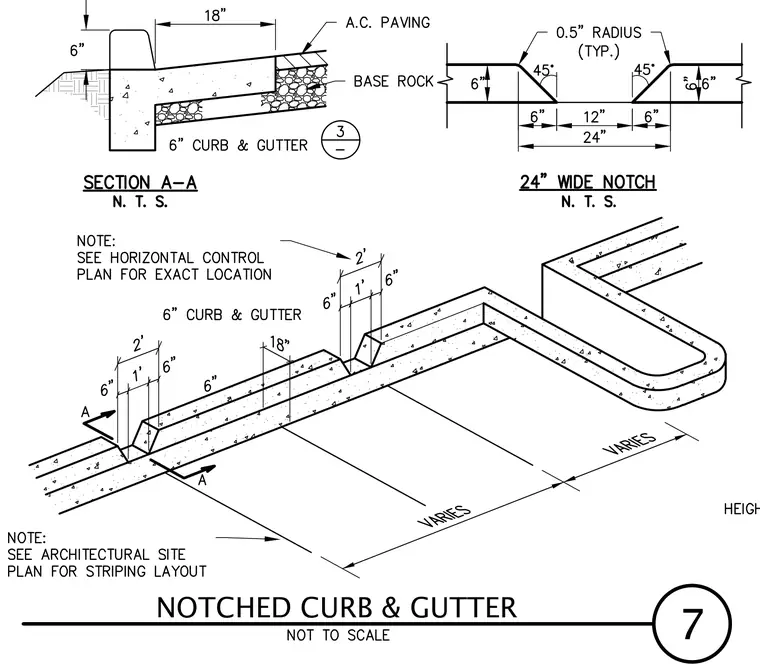

A six-inch concrete curb and gutter adjoins asphaltic concrete paving resting on compacted base rock. The drainage notch features forty-five degree side slopes, a twelve-inch flat bottom, and half-inch rounded edges. Overall notch width measures twenty-four inches with six-inch transition slopes on each side. Horizontal placement and striping layout are determined per site and control plans.
