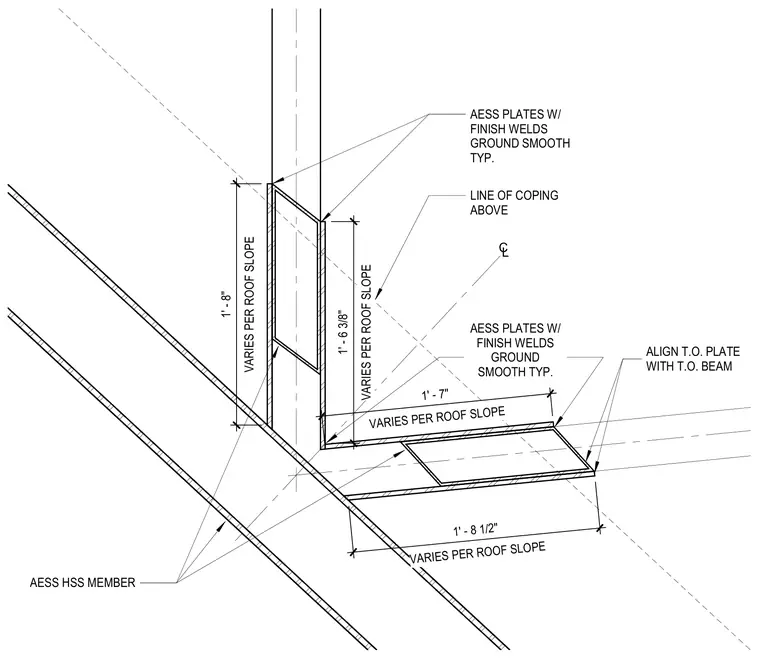

An architecturally exposed structural steel hollow structural section member occurs at a ridge beam intersection. The assembly incorporates custom architecturally exposed structural steel plates with finish welds ground smooth typically. Plate top alignment matches the top of the beam, and dimensions vary per roof slope.
V A R I E S P E R R O O F S L O P E 1 ' - 7 " V A R I E S P E R R O O F S L O P E 1 ' - 8 1 / 2 " V A R I E S P E R R O O F S L O P E 1 ' - 6 3 / 8 " V A R I E S P E R R O O F S L O P E 1 ' - 8 " AESS HSS MEMBER AESS PLATES W/ FINISH WELDS GROUND SMOOTH TYP. AESS PLATES W/ FINISH WELDS GROUND SMOOTH TYP. CL LINE OF COPING ABOVE ALIGN T.O. PLATE WITH T.O. BEAM
