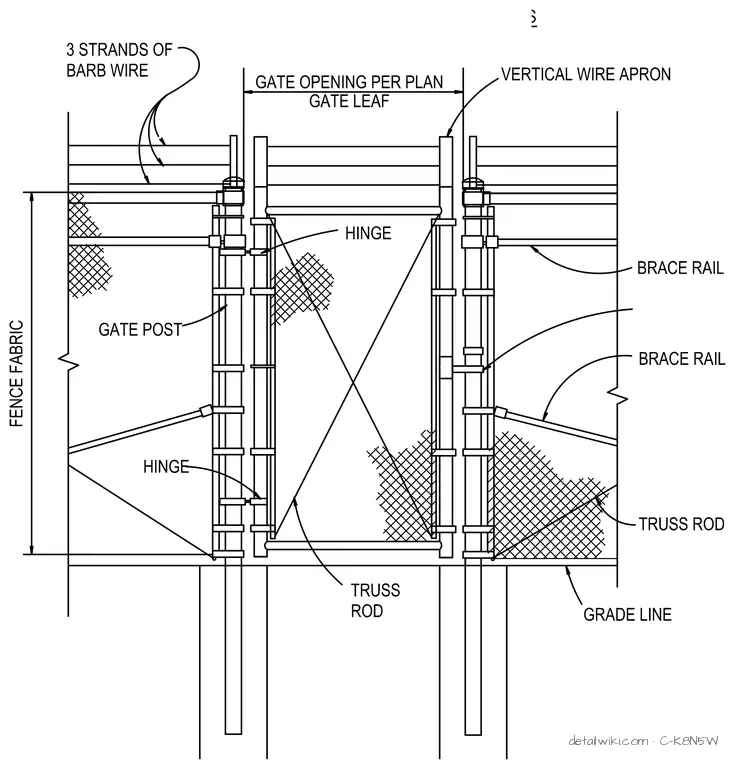

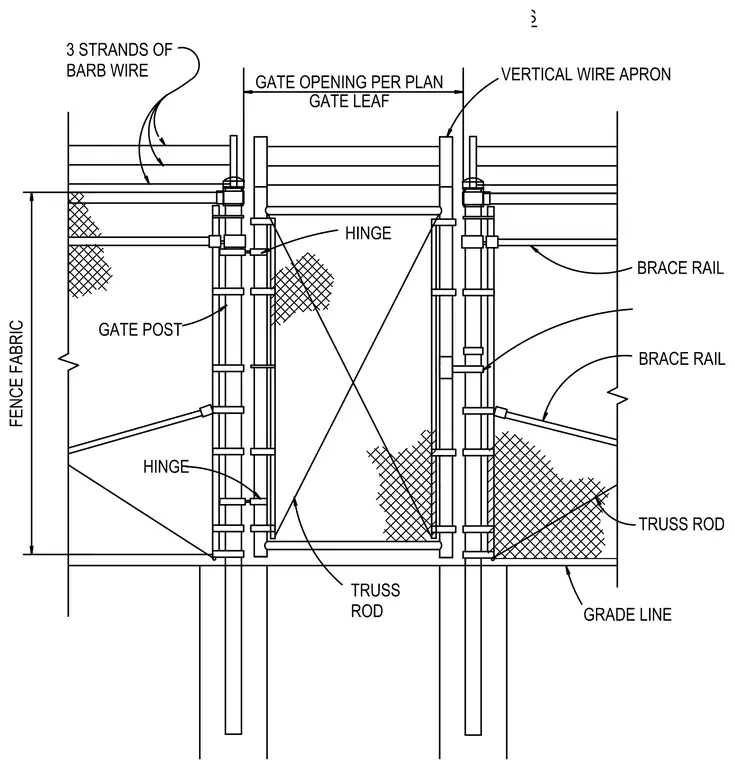

This assembly consists of a gate leaf mounted to gate posts with hinges, with the gate opening width determined per plan. The gate frame is reinforced with diagonal truss rods for structural rigidity. The adjacent fence line includes brace rails and a vertical wire apron extending to the grade line. Three strands of barbed wire are installed at the top of the fence and gate assembly. Fence fabric is attached to the gate leaf and the surrounding fence structure.
