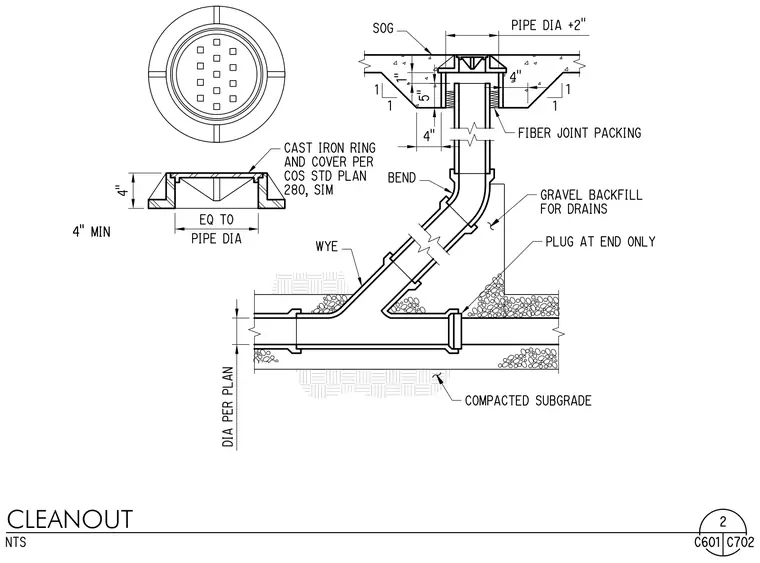

A sanitary cleanout assembly penetrates a slab on grade, featuring a cast iron ring and cover matching a standard city plan resting over a pipe diameter plus two inches opening. The vertical pipe is wrapped with fiber joint packing and surrounded by gravel backfill for drains. The assembly transitions through a bend and a wye fitting to the main run, with a plug at the end only, all bedded over compacted subgrade.
