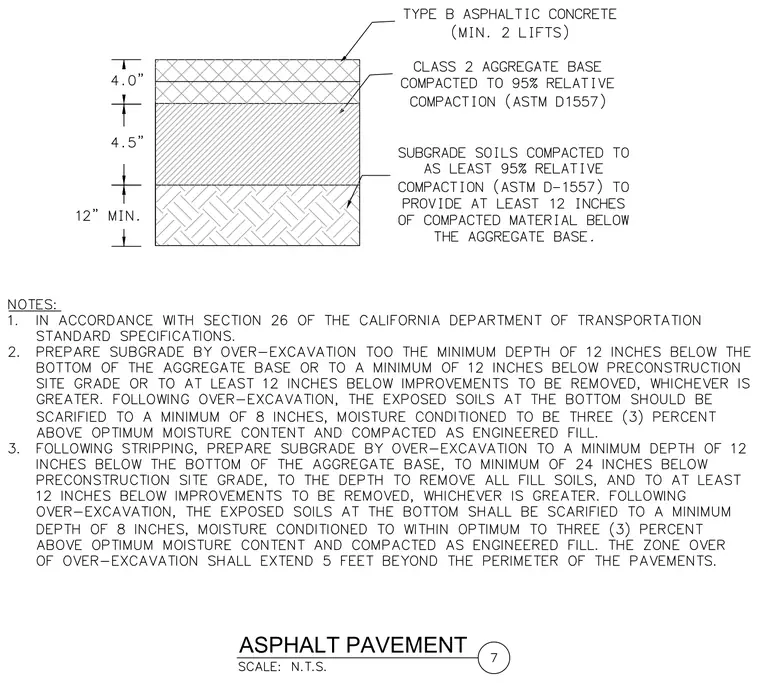

This asphalt pavement section consists of a 4.0-inch layer of Type B asphaltic concrete placed in a minimum of two lifts over a 4.5-inch Class 2 aggregate base compacted to 95 percent relative compaction per ASTM D1557. The underlying subgrade soils are compacted to at least 95 percent relative compaction per ASTM D1557 to provide a minimum of 12 inches of compacted material below the aggregate base. Work must comply with Section 26 of the California Department of Transportation standard specifications. Subgrade preparation requires over-excavation to a minimum depth of 12 inches below the bottom of the aggregate base or preconstruction site grade, followed by scarification to a minimum depth of 8 inches, moisture conditioning to within three percent above optimum moisture content, and compaction as engineered fill.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
