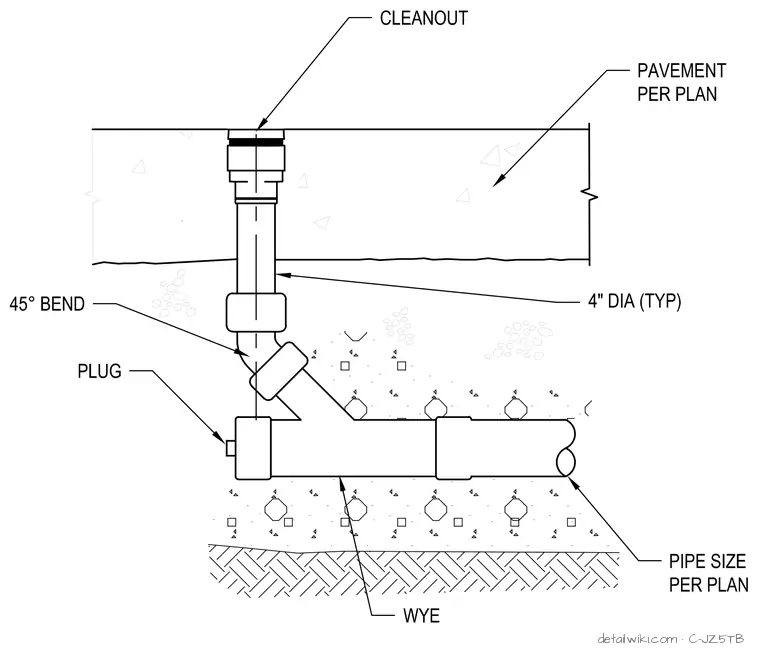

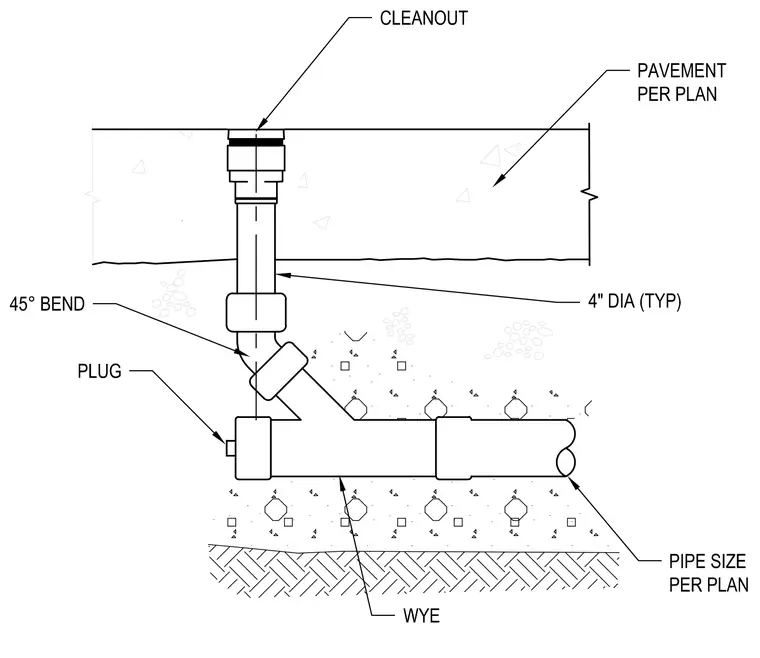

This assembly consists of a four-inch diameter pipe riser extending through the pavement to a surface-mounted cleanout. The riser connects to a forty-five degree bend, which transitions into a wye fitting on the main horizontal pipe run. A plug is installed at the end of the wye to seal the line. The main pipe size is determined per the project plans, and the pavement construction is also specified per the plans.
