Storefront Sill Detail at Metal Stud Wall

Materials

Cold-formed Steel Metal (misc.)Gypsum / Drywall

Elements

About this detail

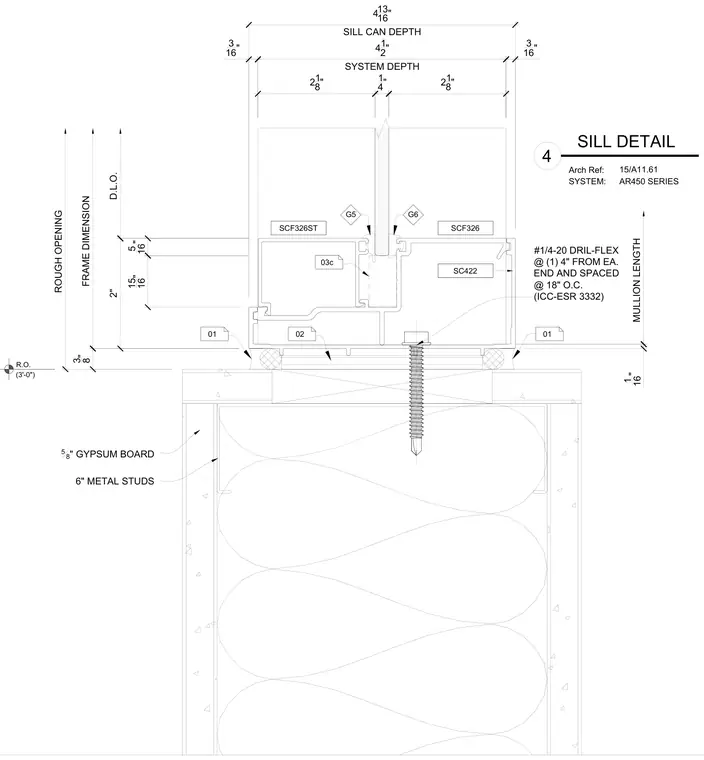

An AR450 series storefront framing system rests on a framed wall assembly consisting of six-inch cold-formed metal studs faced with five-eighths-inch gypsum board. The storefront sill member features internal sub-components including structural members SCF326ST, SCF326, SC422, and gasket profiles G5 and G6. The assembly is secured to the support using one-quarter-twenty Dril-Flex fasteners located four inches from each end and spaced at eighteen inches on center in accordance with ICC-ESR 3332. Dimensions indicate a rough opening, frame dimension, daylight opening, mullion length, and overall system and sill can depths.
