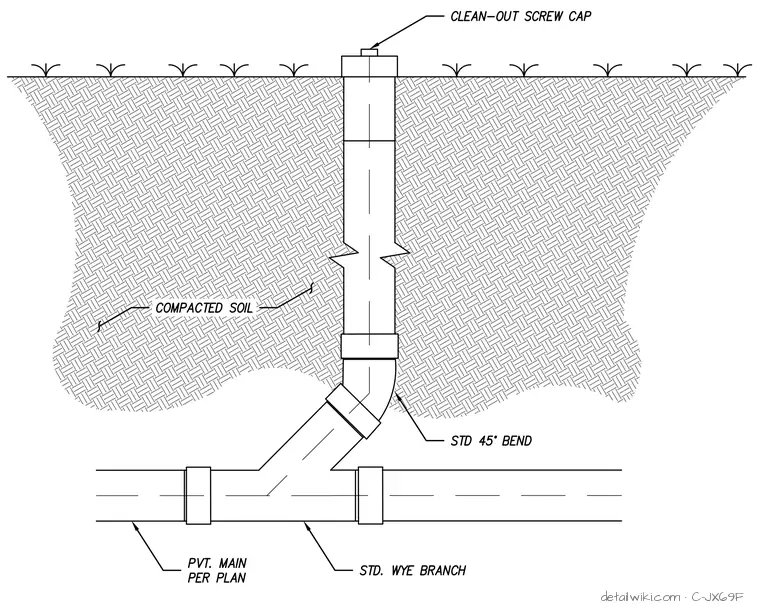

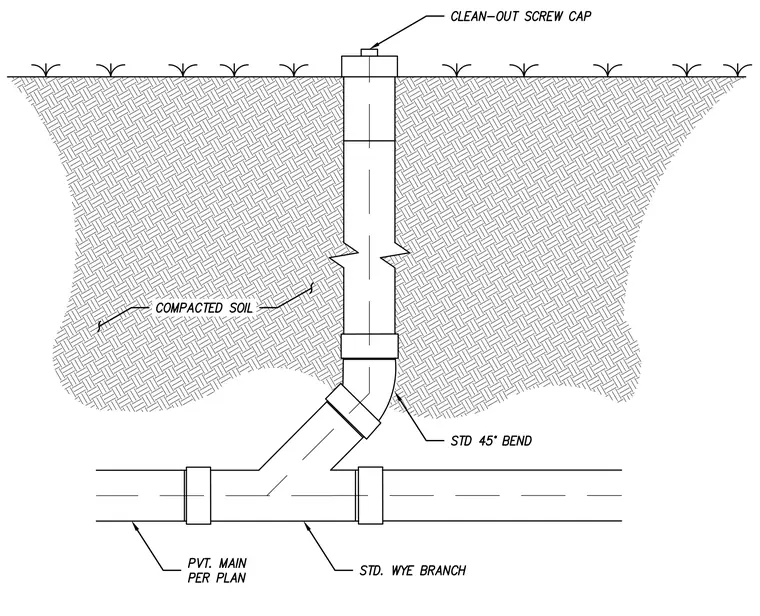

This assembly consists of a vertical cleanout riser terminating at grade with a screw cap, embedded within compacted soil. The riser connects to the private main line using a standard wye branch fitting and a standard forty-five degree bend. The private main is sized per the project plans. The entire vertical pipe section is backfilled with compacted soil to provide lateral support.
