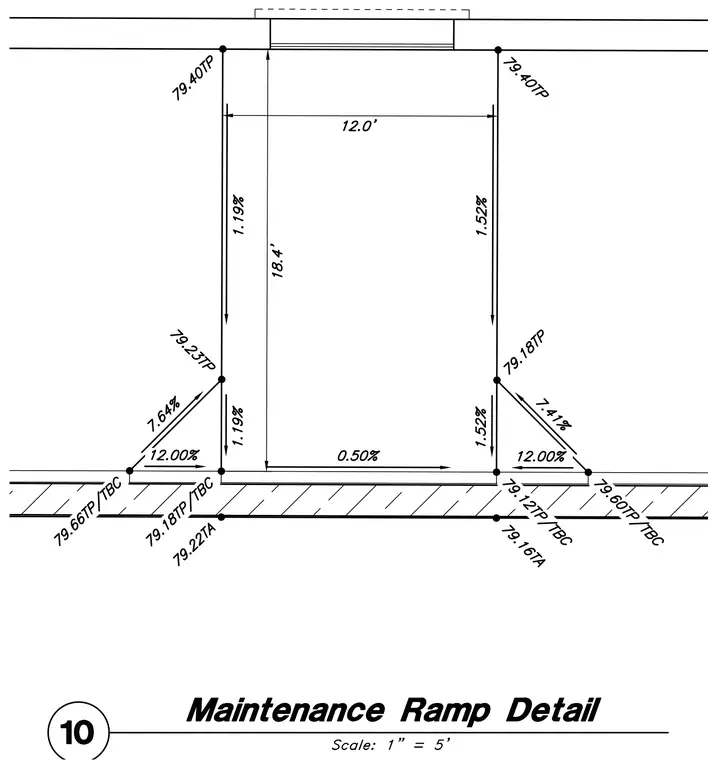

A civil maintenance ramp detail displays specific top-of-pavement spot elevations alongside precise slope percentages ranging from zero point five zero percent to twelve point zero zero percent. Dimensional callouts indicate an eighteen point four foot length and a twelve point zero foot width. Edge conditions feature top-of-pavement and top-of-curb markers defining the transition zones. Sloping aprons flank the primary pathway with matching grade transitions.
