Vehicular Concrete Pavement

Materials

About this detail

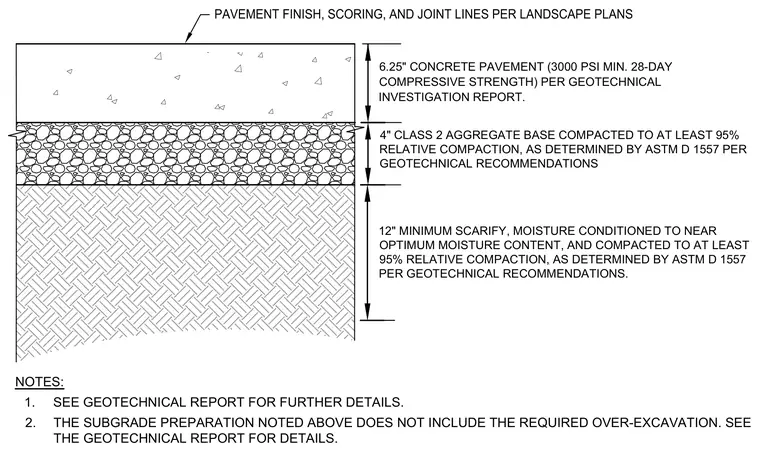

A vehicular concrete pavement section consists of a six-and-a-quarter-inch concrete pavement with a minimum twenty-eight-day compressive strength of three thousand PSI. Below the concrete slab rests a four-inch Class 2 aggregate base compacted to at least ninety-five percent relative compaction as determined by ASTM D 1557. The underlying subgrade requires a twelve-inch minimum scarification, moisture conditioning to near optimum moisture content, and compaction to at least ninety-five percent relative compaction per geotechnical recommendations. Pavement finish, scoring, and joint lines are installed per landscape plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
