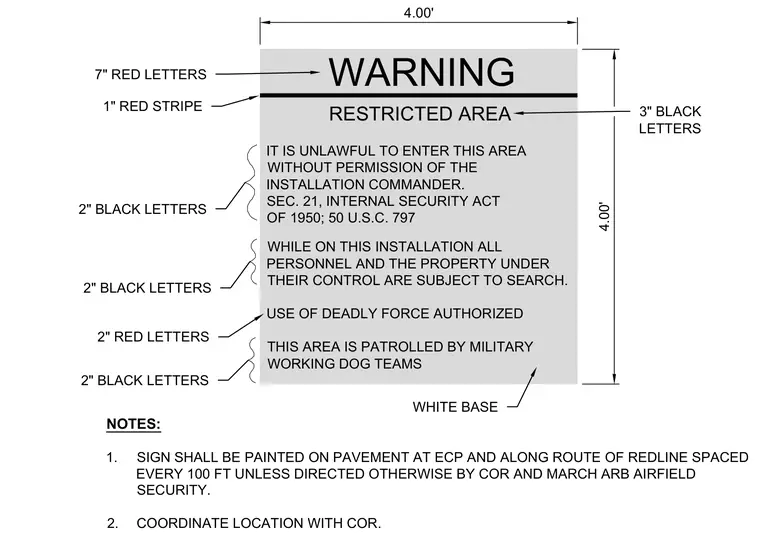

The four-foot by four-foot square sign features a white base with a one-inch red stripe separating the header from the body. Seven-inch red letters spell the word WARNING at the top, followed by three-inch black letters reading RESTRICTED AREA. Two-inch black letters detail legal statutes regarding unauthorized entry and search policies, while two-inch red letters state that the use of deadly force is authorized. Two-inch black letters at the bottom indicate that the area is patrolled by military working dog teams. The sign is specified to be painted on pavement at entry control points and along redline routes spaced every one hundred feet.
NOTES: 1. SIGN SHALL BE PAINTED ON PAVEMENT AT ECP AND ALONG ROUTE OF REDLINE SPACED EVERY 100 FT UNLESS DIRECTED OTHERWISE BY COR AND MARCH ARB AIRFIELD SECURITY. 2. COORDINATE LOCATION WITH COR. IT IS UNLAWFUL TO ENTER THIS AREA WITHOUT PERMISSION OF THE INSTALLATION COMMANDER. SEC. 21, INTERNAL SECURITY ACT OF 1950; 50 U.S.C. 797 WHILE ON THIS INSTALLATION ALL PERSONNEL AND THE PROPERTY UNDER THEIR CONTROL ARE SUBJECT TO SEARCH. USE OF DEADLY FORCE AUTHORIZED THIS AREA IS PATROLLED BY MILITARY WORKING DOG TEAMS WARNING 4.00' 4.00' RESTRICTED AREA 2" BLACK LETTERS 2" BLACK LETTERS 7" RED LETTERS WHITE BASE 3" BLACK LETTERS 2" BLACK LETTERS 2" RED LETTERS 1" RED STRIPE
