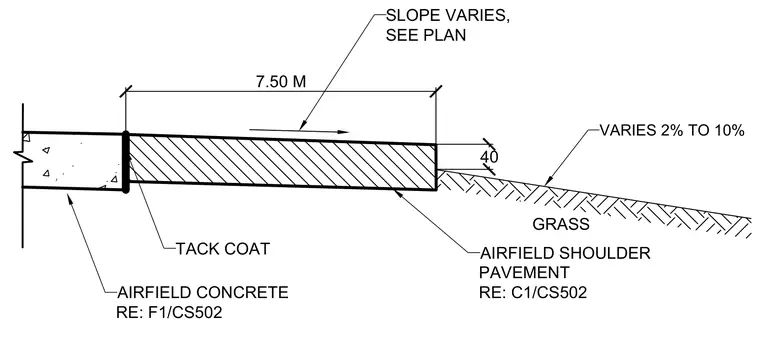

This civil cross section details the transition between an airfield concrete pavement and an adjacent airfield shoulder pavement. A tack coat is applied at the vertical joint between the main concrete apron and the shoulder pavement. The shoulder pavement spans a width of 7.50 meters with a slope that varies per plan. Beyond the paved shoulder, the adjacent grass airfield subgrade slopes away at a rate varying from two to ten percent.
7.50 M 40 VARIES 2% TO 10% GRASS AIRFIELD SHOULDER PAVEMENT RE: C1/CS502 AIRFIELD CONCRETE RE: F1/CS502 TACK COAT SLOPE VARIES, SEE PLAN
