Asphalt Concrete Section

Materials

About this detail

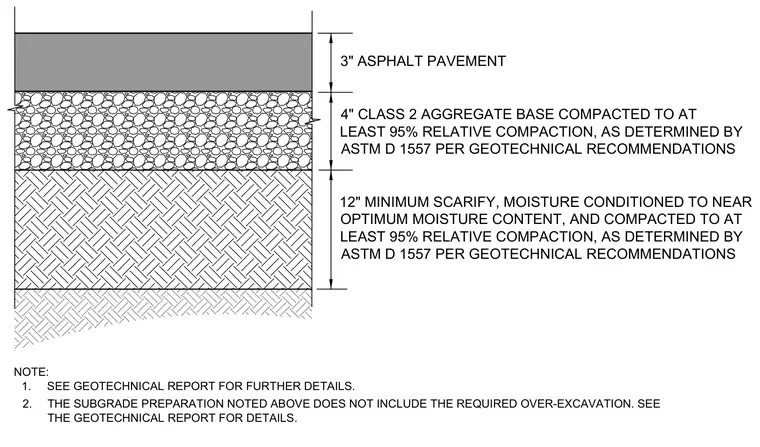

A standard asphalt concrete pavement section features a three-inch asphalt pavement wearing course resting upon a four-inch Class 2 aggregate base. The aggregate base requires compaction to at least ninety-five percent relative compaction per ASTM D 1557 geotechnical recommendations. Below the base lies a twelve-inch minimum scarified, moisture-conditioned, and compacted subgrade layer. The subgrade preparation excludes required over-excavation, which must be verified per the geotechnical report.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
