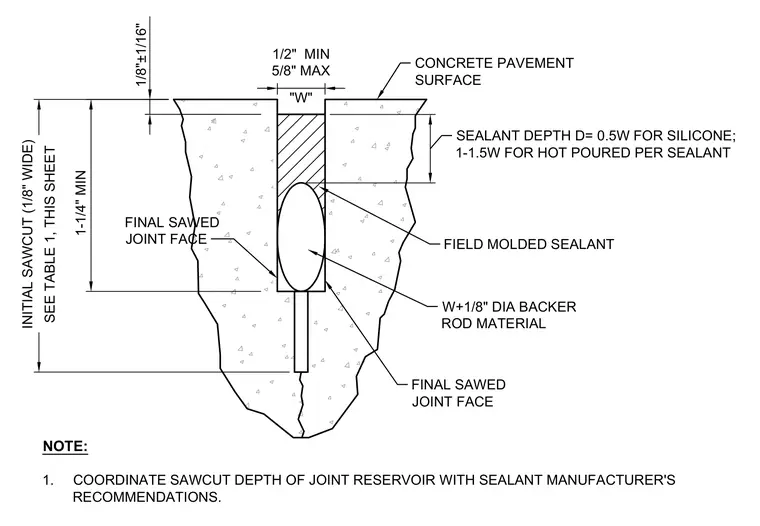

A contraction joint in a concrete pavement surface, incorporating an initial sawcut with a width of one-eighth inch and a minimum depth of one and one-quarter inches. A backer rod material with a diameter of W plus one-eighth inch is positioned inside the final sawed joint face beneath a field-molded sealant. The sealant depth D is specified as zero point five times W for silicone and one to one point five times W for hot poured sealants, depending on manufacturer recommendations. The joint reservoir width ranges from a minimum of one-half inch to a maximum of five-eighths inch, with a tolerance of one-eighth plus or minus one-sixteenth inch.
INITIAL SAWCUT (1/8" WIDE) 1-1/4" MIN SEE TABLE 1, THIS SHEET 1/2" MIN 5/8" MAX "W" 1/8"±1/16" NOTE: 1. COORDINATE SAWCUT DEPTH OF JOINT RESERVOIR WITH SEALANT MANUFACTURER'S RECOMMENDATIONS. FINAL SAWED JOINT FACE W+1/8" DIA BACKER ROD MATERIAL FINAL SAWED JOINT FACE CONCRETE PAVEMENT SURFACE FIELD MOLDED SEALANT SEALANT DEPTH D= 0.5W FOR SILICONE; 1-1.5W FOR HOT POURED PER SEALANT
