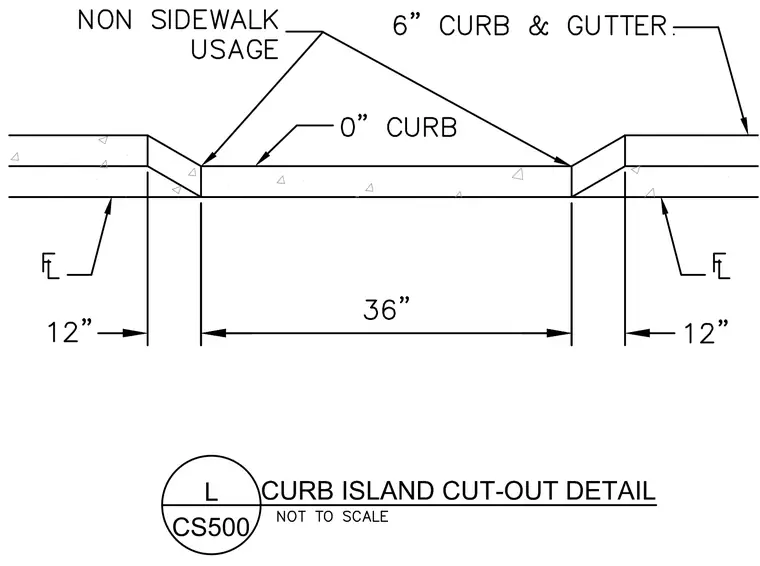

A six-inch concrete curb and gutter assembly incorporates a thirty-six-inch zero-inch curb transition designed for non-sidewalk usage. The profile transitions down from the standard six-inch height over twelve-inch sloped segments on either side of the flat thirty-six-inch cut-out section. Flow line markers indicate the drainage elevation along the base of the curb and gutter.
