Concrete Pavement Section

Materials

About this detail

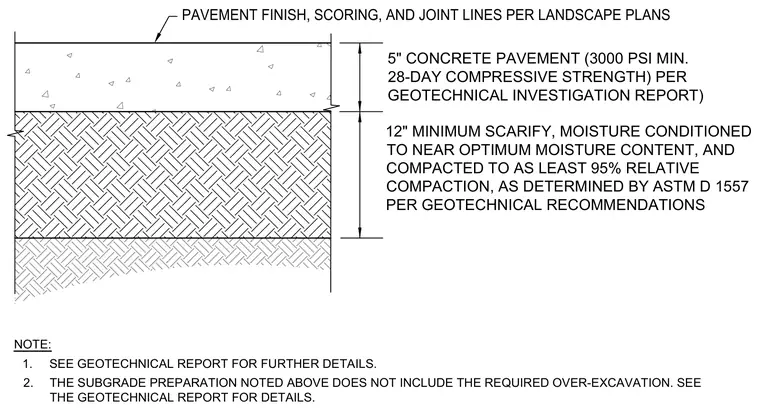

Standard exterior concrete pavement assembly supported by prepared subgrade. A five-inch thick concrete pavement layer with a minimum compressive strength of three thousand pounds per square inch at twenty-eight days rests directly upon the subgrade. Beneath the concrete, the subgrade requires a minimum twelve-inch scarification, moisture conditioning to near optimum moisture content, and compaction to at least ninety-five percent relative compaction per ASTM D 1557. Pavement finish, scoring, and joint lines are installed per the landscape plans.
