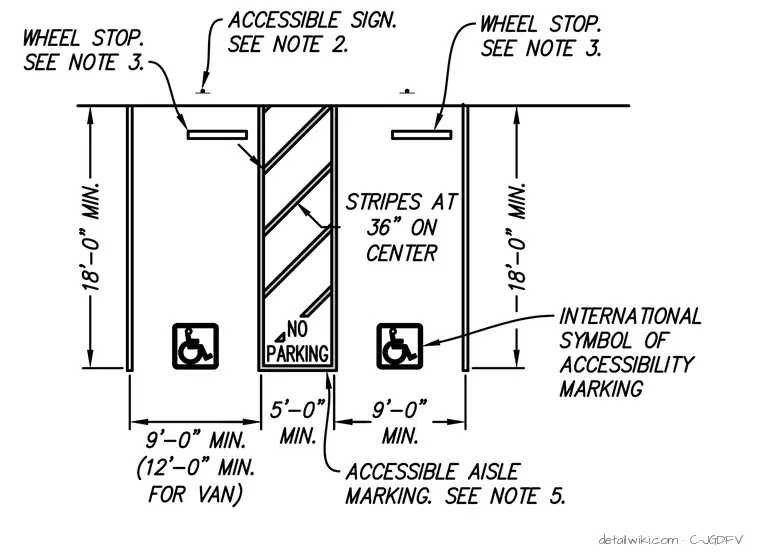

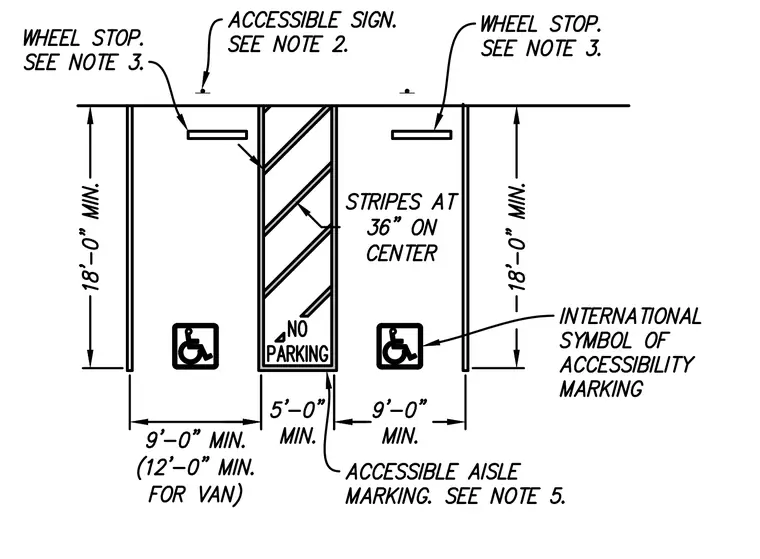

This layout defines the minimum dimensions for accessible parking stalls, requiring a 9-foot minimum width for standard spaces and a 12-foot minimum width for van-accessible spaces. An adjacent 5-foot minimum width accessible aisle is marked with diagonal stripes at 36 inches on center and labeled with 'NO PARKING' text. Each stall requires a minimum depth of 18 feet and includes a wheel stop. The International Symbol of Accessibility marking is required for each stall, and an accessible sign is positioned at the head of the space.
