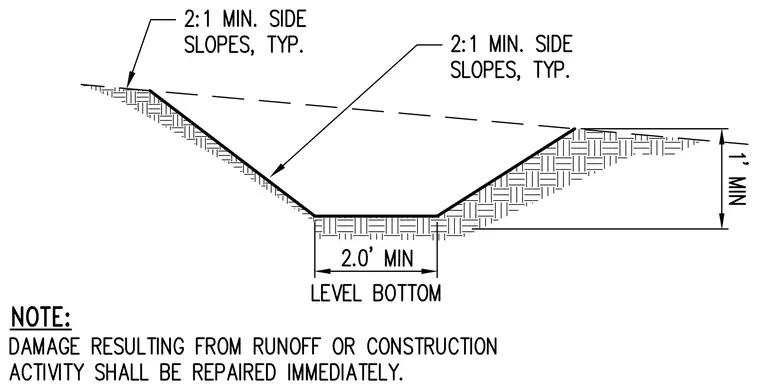

The interceptor ditch features two-to-one minimum side slopes typically, a level bottom measuring two feet minimum, and a minimum depth of one foot. Construction note mandates that damage resulting from runoff or construction activity shall be repaired immediately.
