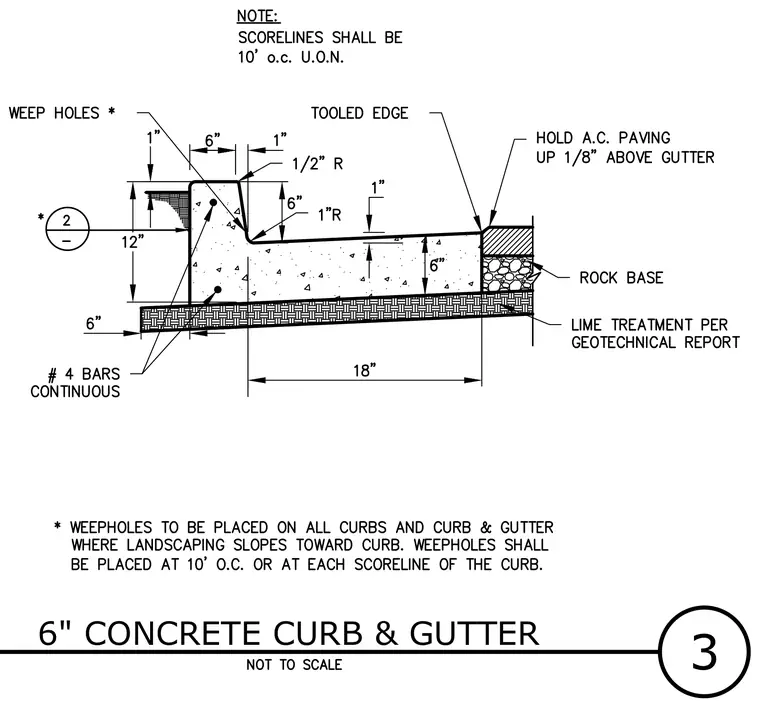

The cast-in-place concrete curb and gutter profile features a six-inch vertical curb face with a twelve-inch total depth and an eighteen-inch gutter width. Two continuous number four reinforcing bars are embedded within the concrete section, supported over a rock base and a lime-treated subgrade layer per the geotechnical report. A tooled edge is provided at the gutter interface, and asphalt concrete paving is held up one-eighth inch above the gutter lip. Scorelines are spaced at ten feet on center unless noted otherwise, and weep holes are placed at ten-foot intervals or at each scoreline where landscaping slopes toward the curb.
