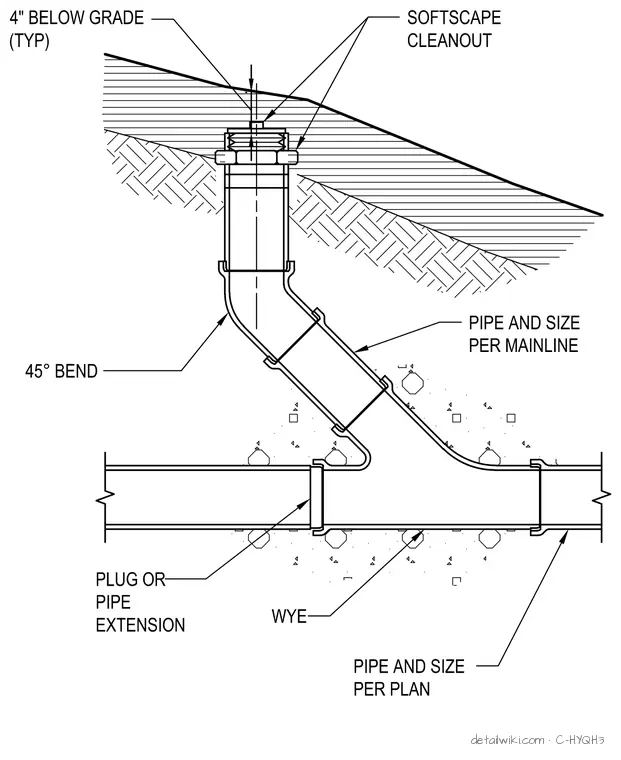

This assembly consists of a wye fitting connected to the main drainage line, which is sized per plan. A pipe extension or plug is installed at the wye branch, followed by a 45-degree bend to transition the pipe vertically. The vertical riser pipe is sized per the mainline and terminates at a softscape cleanout cap positioned four inches below grade. The entire assembly is bedded in gravel to provide support and drainage.
