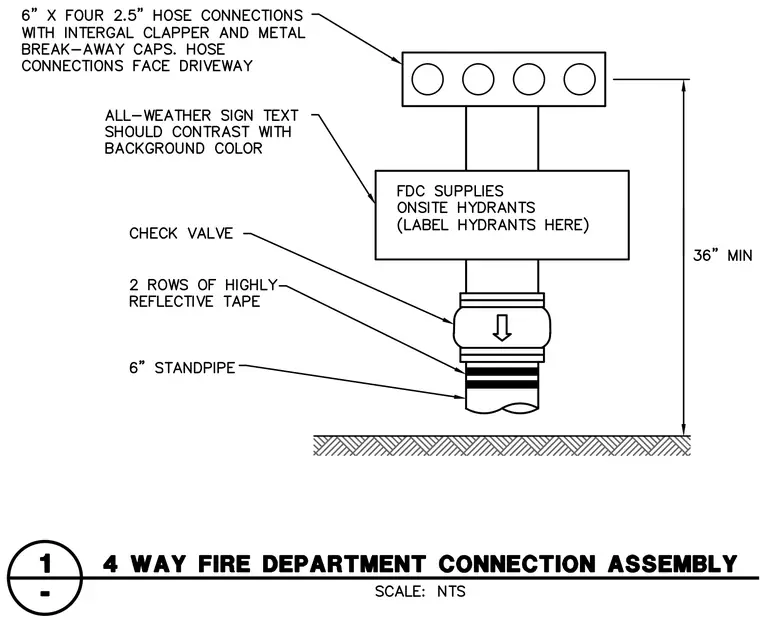

A six-inch by four 2.5-inch hose connection header features an integral clapper and metal break-away caps, positioned facing the driveway. A sign with all-weather text reading 'FDC SUPPLIES ONSITE HYDRANTS' mounts below the header. The assembly connects to a six-inch standpipe containing a check valve wrapped with two rows of highly reflective tape. The bottom of the hose connection sits a minimum of 36 inches above finished grade.
