Civil · C-HTWZF

Area Drain Assembly with Grate and Wye or Elbow

Elements

About this detail

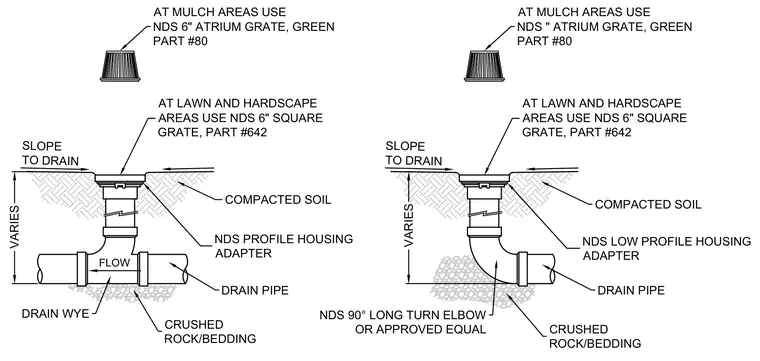

Surface area drain assemblies for lawn, hardscape, and mulch areas with varying depths. At mulch areas, an NDS six-inch green atrium grate part number 80 is specified, while lawn and hardscape areas utilize an NDS six-inch square grate part number 642. The grates connect to NDS profile housing adapters or NDS low profile housing adapters supported by compacted soil and crushed rock bedding. Subsurface drainage is routed through a drain pipe connected to either a drain wye or an NDS ninety-degree long turn elbow. Surrounding grades slope toward the drain to ensure positive surface water runoff.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
