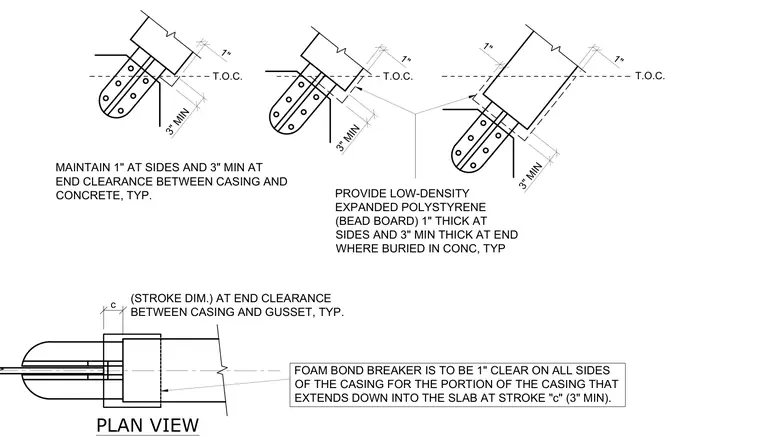

Buckling-restrained brace casing is embedded in a concrete slab with a surrounding one-inch low-density expanded polystyrene bead board bond breaker at the sides and a three-inch minimum thickness at the end. Maintain one-inch clearance at the sides and three-inch minimum clearance at the end between the casing and the concrete. A foam bond breaker is provided one inch clear on all sides of the casing for the portion extending into the slab at a stroke dimension of three inches minimum.
PLAN VIEW FOAM BOND BREAKER IS TO BE 1" CLEAR ON ALL SIDES OF THE CASING FOR THE PORTION OF THE CASING THAT EXTENDS DOWN INTO THE SLAB AT STROKE "c" (3" MIN). c (STROKE DIM.) AT END CLEARANCE BETWEEN CASING AND GUSSET, TYP. 1" T.O.C. 1" 1" T.O.C. T.O.C. 3" MIN 1" 3" MIN 3" MIN PROVIDE LOW-DENSITY EXPANDED POLYSTYRENE (BEAD BOARD) 1" THICK AT SIDES AND 3" MIN THICK AT END WHERE BURIED IN CONC, TYP MAINTAIN 1" AT SIDES AND 3" MIN AT END CLEARANCE BETWEEN CASING AND CONCRETE, TYP.
