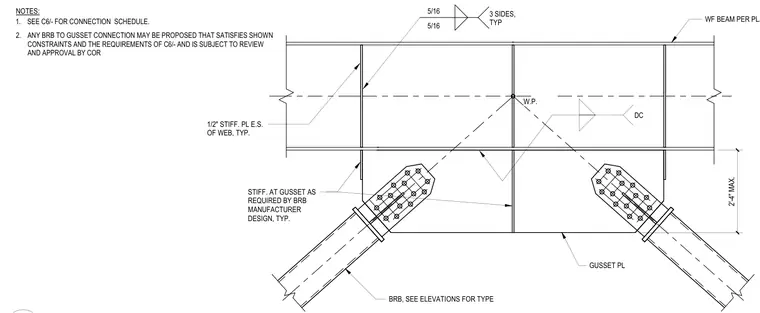

A buckling-restrained brace frames into a wide-flange beam using a gusset plate welded to the beam web. One-half-inch stiffener plates are welded to each side of the beam web with five-sixteenth-inch fillet welds on three sides typically. Additional stiffeners are provided at the gusset as required by the brace manufacturer design. The wide-flange beam size is specified per plan.
W.P. BRB, SEE ELEVATIONS FOR TYPE GUSSET PL 1/2" STIFF. PL E.S. OF WEB, TYP. 5/16 5/16 3 SIDES, TYP STIFF. AT GUSSET AS REQUIRED BY BRB MANUFACTURER DESIGN, TYP. WF BEAM PER PLAN DC 2'-4" MAX. 2. ANY BRB TO GUSSET CONNECTION MAY BE PROPOSED THAT SATISFIES SHOWN CONSTRAINTS AND THE REQUIREMENTS OF C6/- AND IS SUBJECT TO REVIEW AND APPROVAL BY COR NOTES: 1. SEE C6/- FOR CONNECTION SCHEDULE.
