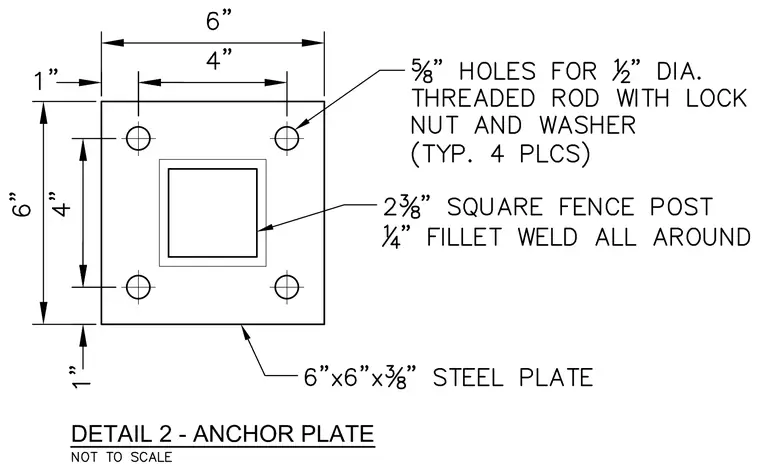

A square fence post measuring two and three-eighths inches is centered on a six-inch by six-inch by three-eighths-inch steel plate and secured with a quarter-inch fillet weld all around. The base plate features four five-eighths-inch holes spaced four inches apart horizontally and vertically, positioned one inch from the plate edges to receive half-inch diameter threaded rods with lock nuts and washers.
