Civil · C-HHNQJ

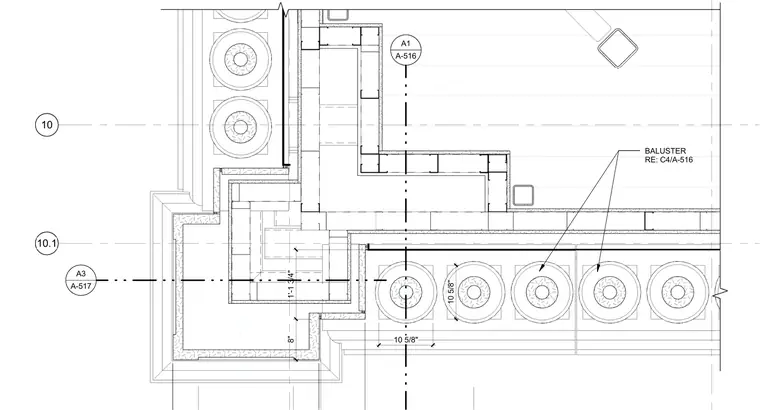

Tower Baluster Level Plan Detail

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: C5
Discipline: Civil

Elements

Railings / Guards

Text on the drawing

10 10.1 A1 A-516 10 5/8" 10 5/8" 1'-1 3/4" 8" A3 A-517 BALUSTER RE: C4/A-516
