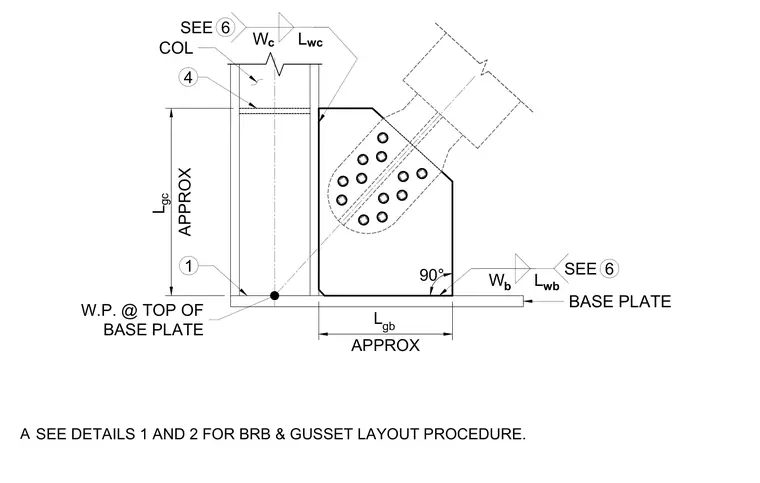

A structural column rests on a steel base plate with a gusset plate attached to accommodate a diagonal bracing member. The gusset plate is welded to both the column and the base plate using specified weld sizes and lengths. The bracing member is bolted to the gusset plate through a multi-bolt connection layout. Additional layout procedures for the buckling-restrained brace and gusset are referenced to separate details.
L gc APPROX COL 4 W.P. @ TOP OF BASE PLATE L gb APPROX 6 SEE W b BASE PLATE 90° 6 SEE W c L wc L wb SEE DETAILS 1 AND 2 FOR BRB & GUSSET LAYOUT PROCEDURE. A 1
