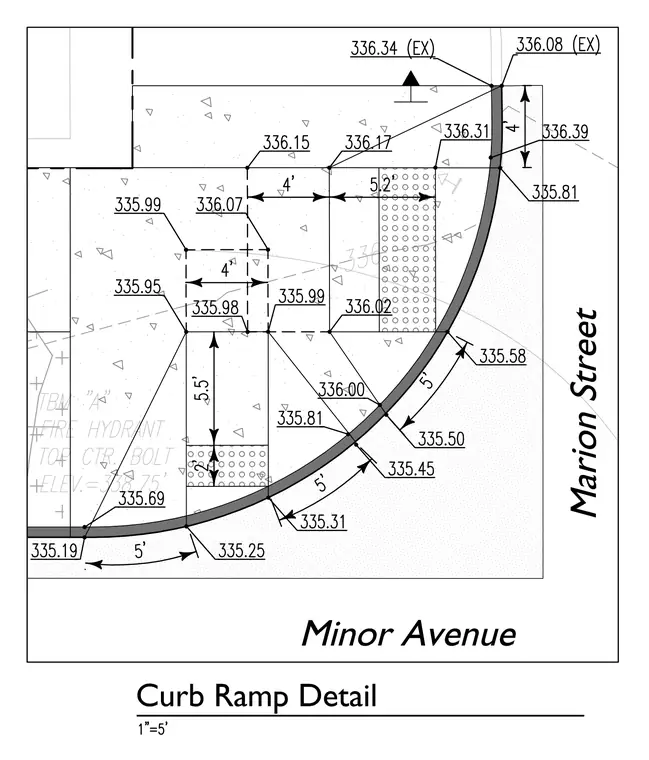

A concrete curb ramp layout at the corner of Marion Street and Minor Avenue, annotated with finished grade elevations and dimensional offsets. The accessible ramp features a detectable warning surface with truncated domes, flanked by standard concrete sidewalks and curbing. Dimensioned segments guide the slope transitions and landing placements, with existing elevation markers verifying drainage tie-ins.
