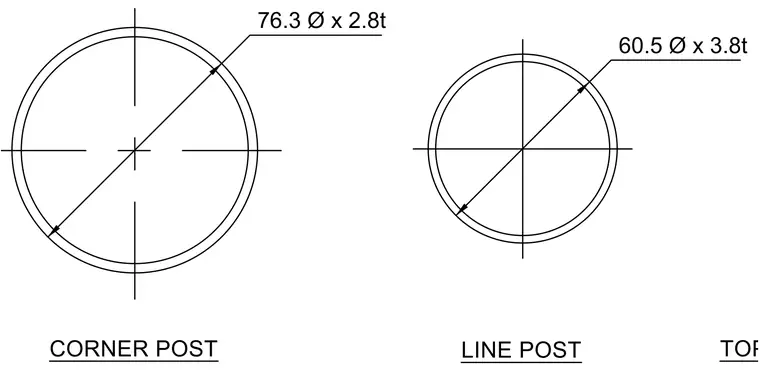

The corner post consists of a 76.3 millimeter diameter hollow circular profile with a 2.8 millimeter wall thickness. The line post consists of a 60.5 millimeter diameter hollow circular profile with a 3.8 millimeter wall thickness. Both post types are centered on orthogonal layout axes.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
