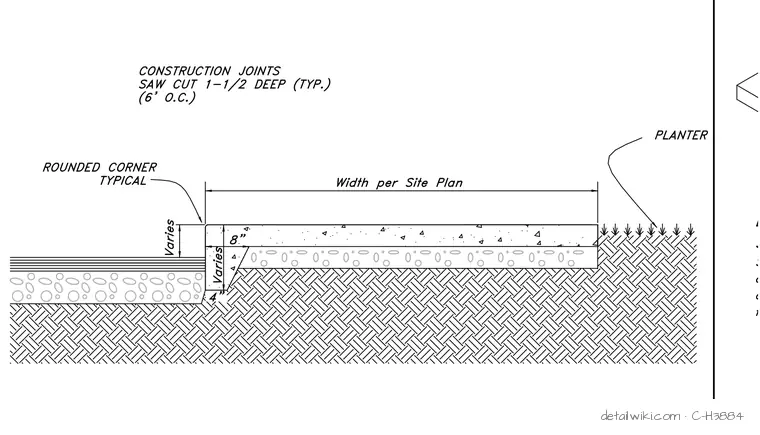

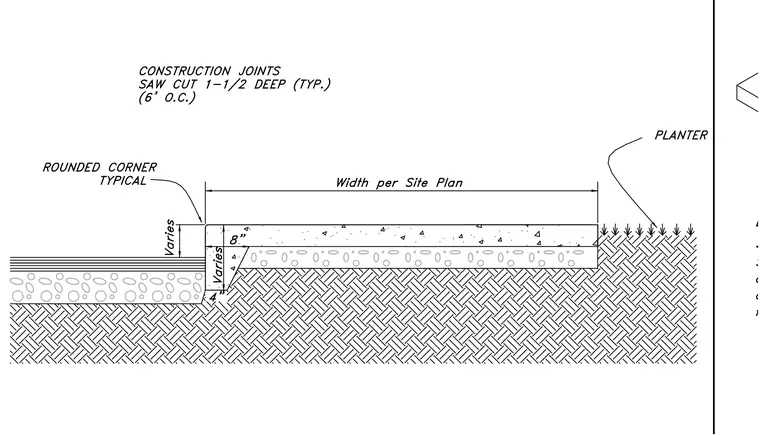

This concrete sidewalk assembly features a thickened edge profile with a four-inch wide sloped footing transition. The sidewalk slab has a nominal thickness of eight inches at the edge, with the overall depth varying per site conditions. A rounded corner is provided at the exterior edge as a typical condition. Construction joints are specified as saw cuts, one and one-half inches deep, spaced at six feet on center. The sidewalk width is determined by the site plan, and the assembly terminates against an adjacent planter area.
