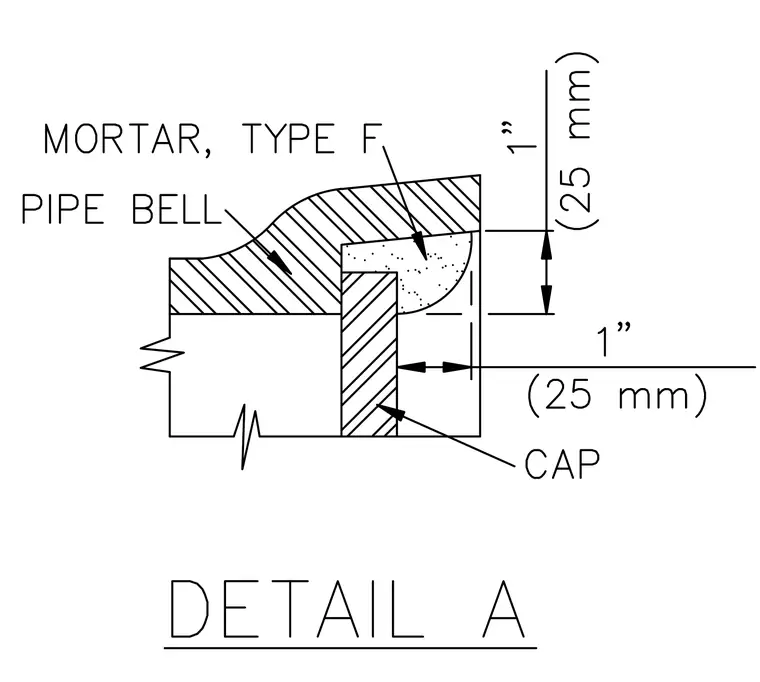

A pipe bell receives a cap with a one-inch vertical clearance and a one-inch horizontal offset. Type F mortar fills the joint between the pipe bell and the cap. Dimensions of twenty-five millimeters or one inch govern the spatial arrangement of the pipe components.
